Cuda Front-Load Parts Washer

Cuda front-load parts washers are easy to use. Completely automatic and solvent-free, these rugged “industrial-sized dishwashers” greatly simplify your parts cleaning tasks.

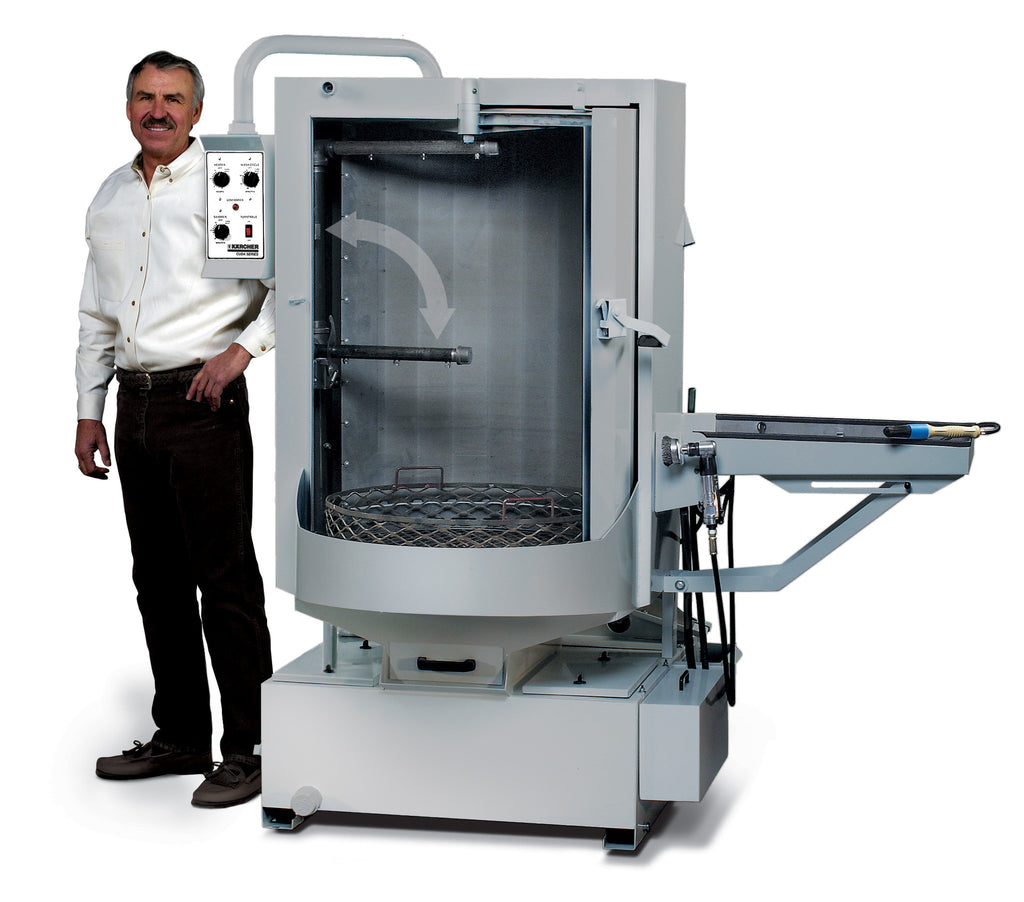

Ergonomics and environmental-friendliness blend nicely in Cuda’s line of front-load parts washers with turntables located knee-high, control panels chest-high, and a curved, recessed entry that allows for easy loading and un-loading of extra-large parts. Cuda’s space saving roll-in door allows easy access to the wash chamber and prevents the wash solution from dripping on the floor.

The popular front-load Cuda parts washers come with removable debris screen, automatic low-water shutoff, disc oil skimmer, convenient access to the sump and easy-to-reach controls for the oil skimmer, heater and wash-cycle timers and turntable on/off switch.

VIEW FRONT-LOAD MODELS BROCHURE

Choose from 4 Models of Front-Load Parts Washers

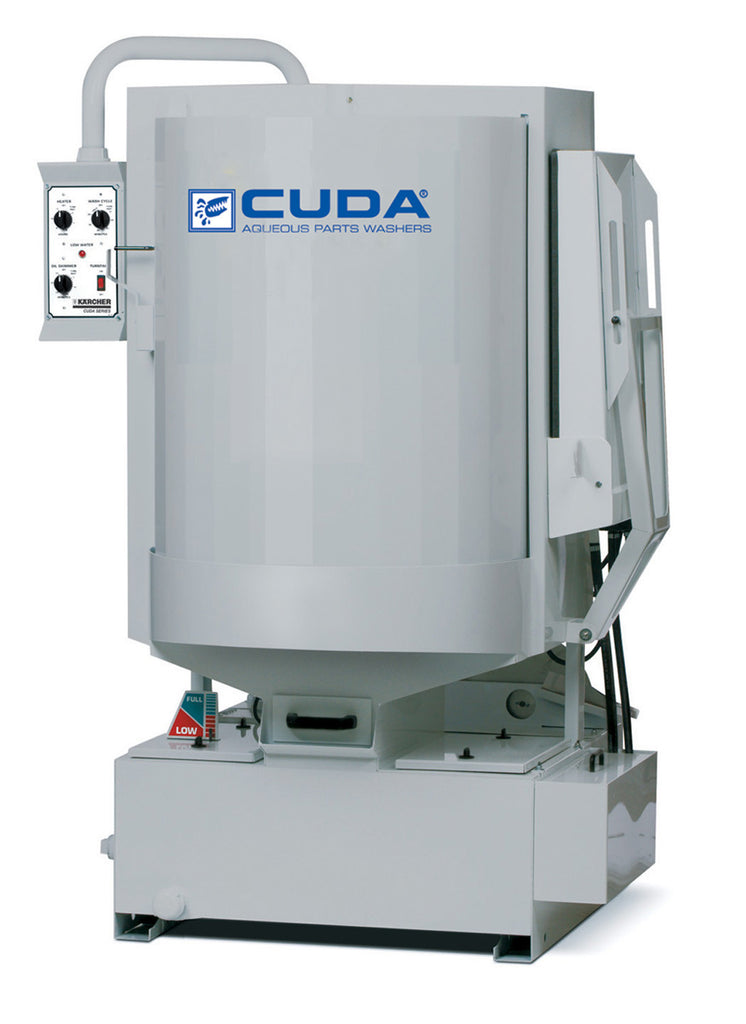

Cuda 2530 Series Front-Load Parts Washers
The Cuda 2530 is the smallest in the front-load automatic parts washer models. The 2530 features a turntable diameter of 25-inches, working height of 30-inches, and load capacity of 500 lbs. The 2530 Series is equipped with a 3 HP vertical seal-less pump producing 50 GPM at 45 PSI.

Brochure Cuda 2530 Front-Load Parts Washer

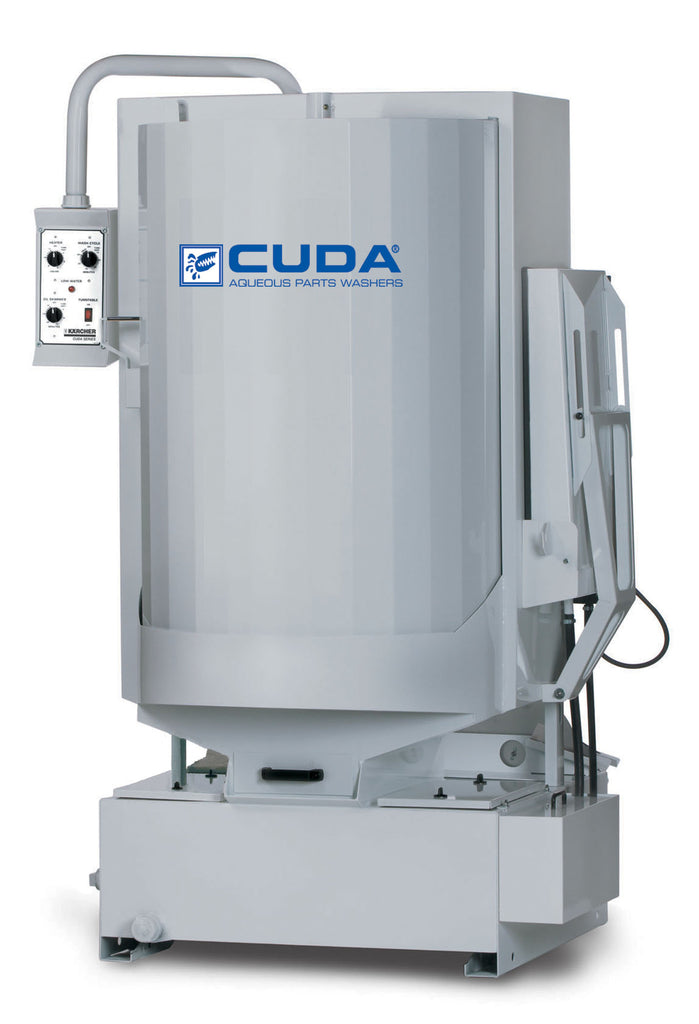

Cuda 2840 Series Front-Load Parts Washers
The Cuda 2840 is the next larger size in the front-load automatic parts washer models. The 2840 features a turntable diameter of 28-inches, working height of 40-inches, and load capacity of 750 lbs. The 2840 Series is equipped with a 3 HP vertical seal-less pump producing 50 GPM at 45 PSI.

Brochure Cuda 2840 Front-Load Parts Washer

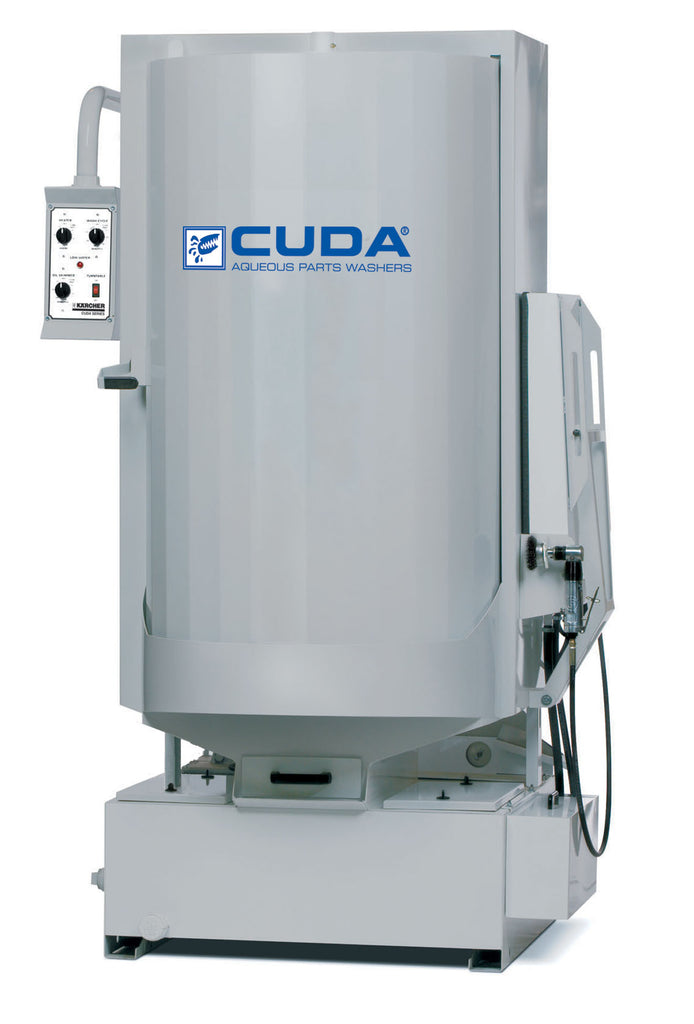

Cuda 2848 Series Front-Load Parts Washers
The Cuda 2848 is one of ProLine's most popular units. It features a turntable diameter of 28-inches, working height of 48-inches, and load capacity of 750 lbs. The 2848 Series is equipped with a 5 HP vertical seal-less pump producing 110 GPM at 50 PSI.

Brochure Cuda 2848 Front-Load Parts Washer

Cuda 4860 Series Front-Load Parts Washers
The Cuda 4860 features a turntable diameter of 48-inches, working height of 60-inches, and load capacity of 5000 lbs. The 4860 Series is equipped with a 7.5 HP vertical seal-less pump producing 200 GPM at 50 PSI, and has a 156-gallon sump capacity.

Brochure Cuda 4860 Front-Load Parts Washer

CALL FOR PRICING! 605-882-5898
